Century

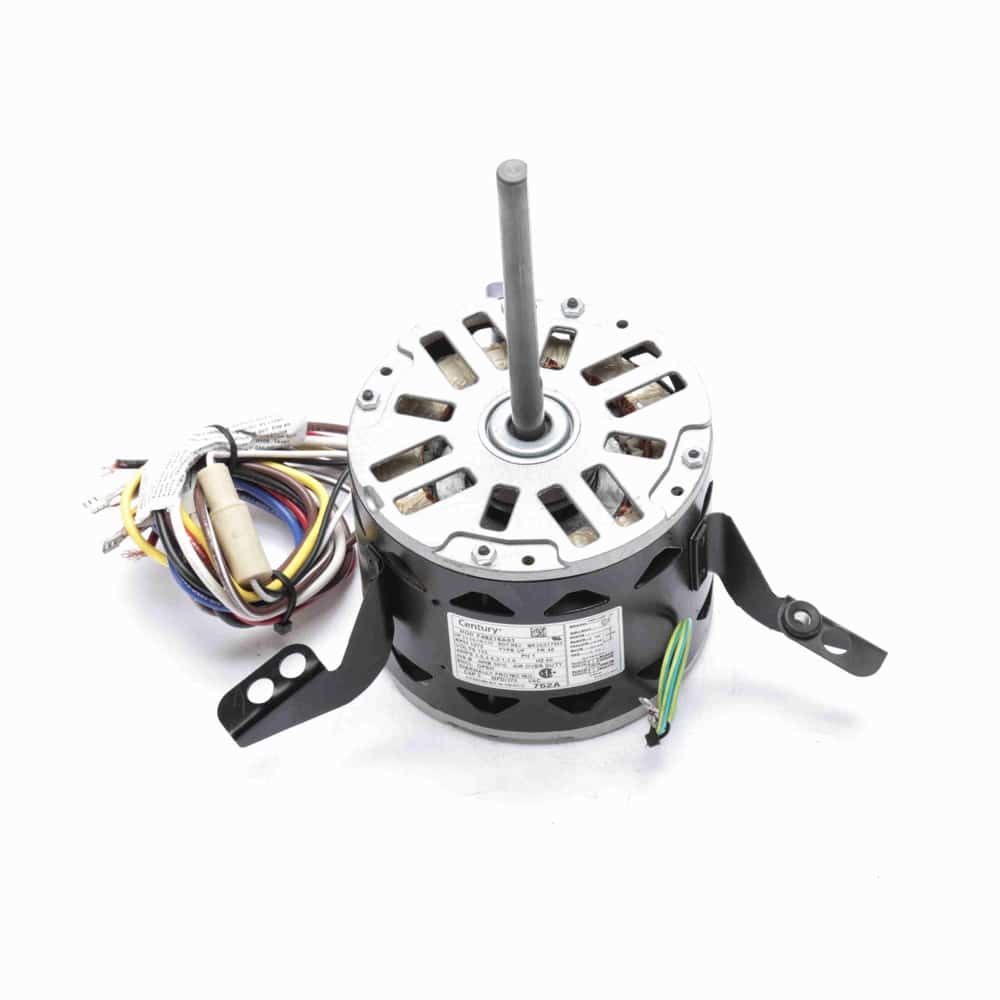

1/4HP PSC 5.6″ ODP 4spd 1075 REV 115V 5uF OEM
Mfr # 752A | Wright’s # CEN 752A
1/4-1/6-1/8-1/10HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
752A
Wright's #
CEN 752A
Country of Origin
IND
Specifications
C Dim
9.86"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4-1/6-1/8-1/10 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
3.9, 2.8, 2.1, 1.6
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЁ” Leads
Flex Mount
1/4-1/6-1/8-1/10HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
