Century

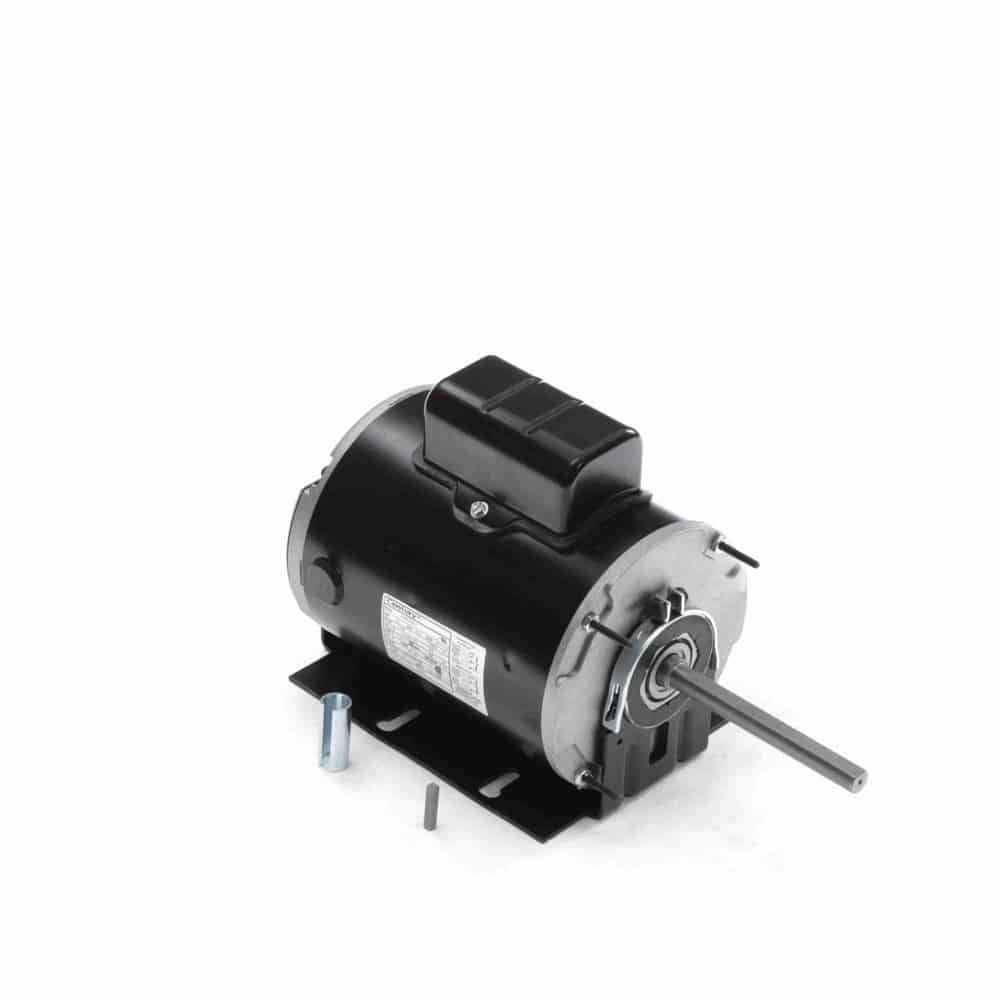

1/2HP PSC 48Y TE 1140 REV 115/208-230V 10uF-inc
Mfr # 733A | Wright’s # CEN 733A
1/2HP Unit Heater Motor, 1 Phase, 48Y Frame, 1140 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
733A
Wright's #
CEN 733A
Country of Origin
IND
Specifications
C Dim
12.78"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.6/2.8
Rated Voltage
115/208-230
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.5"
Speed
1140
Starting Method
Description
Unit Heater Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flati.5″ Leads
Resilient Base
1/2HP Unit Heater Motor, 1 Phase, 48Y Frame, 1140 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, TEAO Enclosure
