Century

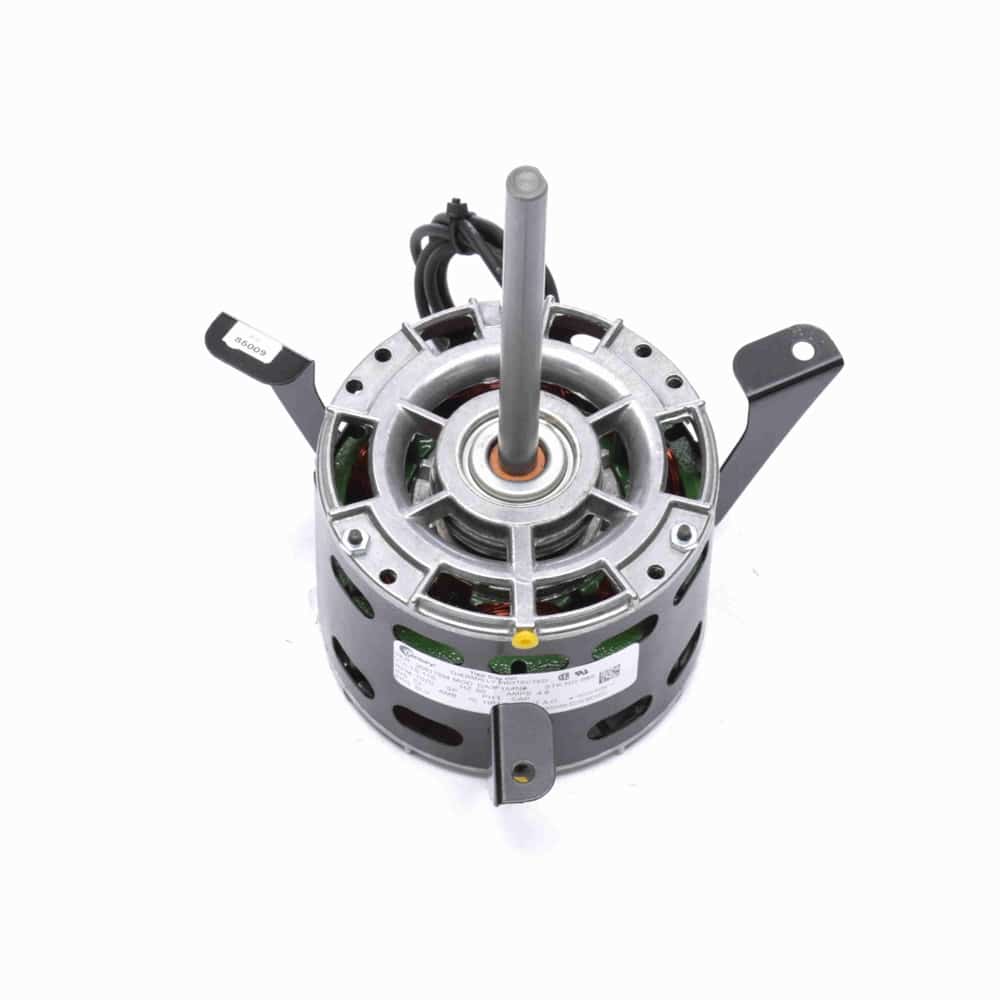

1/5HP ShP 5″ OAO 1070 CWSE 115V OEM
Mfr # 689 | Wright’s # CEN 689
1/5HP OEM Replacement Motor, 1 Phase, 42 Frame, 1070 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
689
Wright's #
CEN 689
Country of Origin
MEX
Specifications
C Dim
9.45"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
A
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
4.8
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1070
Service Factor
1
Shaft Diameter
0.5"
Speed
1070
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatϿ” Leads
Flex Mount
1/5HP OEM Replacement Motor, 1 Phase, 42 Frame, 1070 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
