Century
1/2HP PSC 48Y TE 1100 REV 115V 10uF-inc PFM
Mfr # 648A | Wright’s # CEN 648A

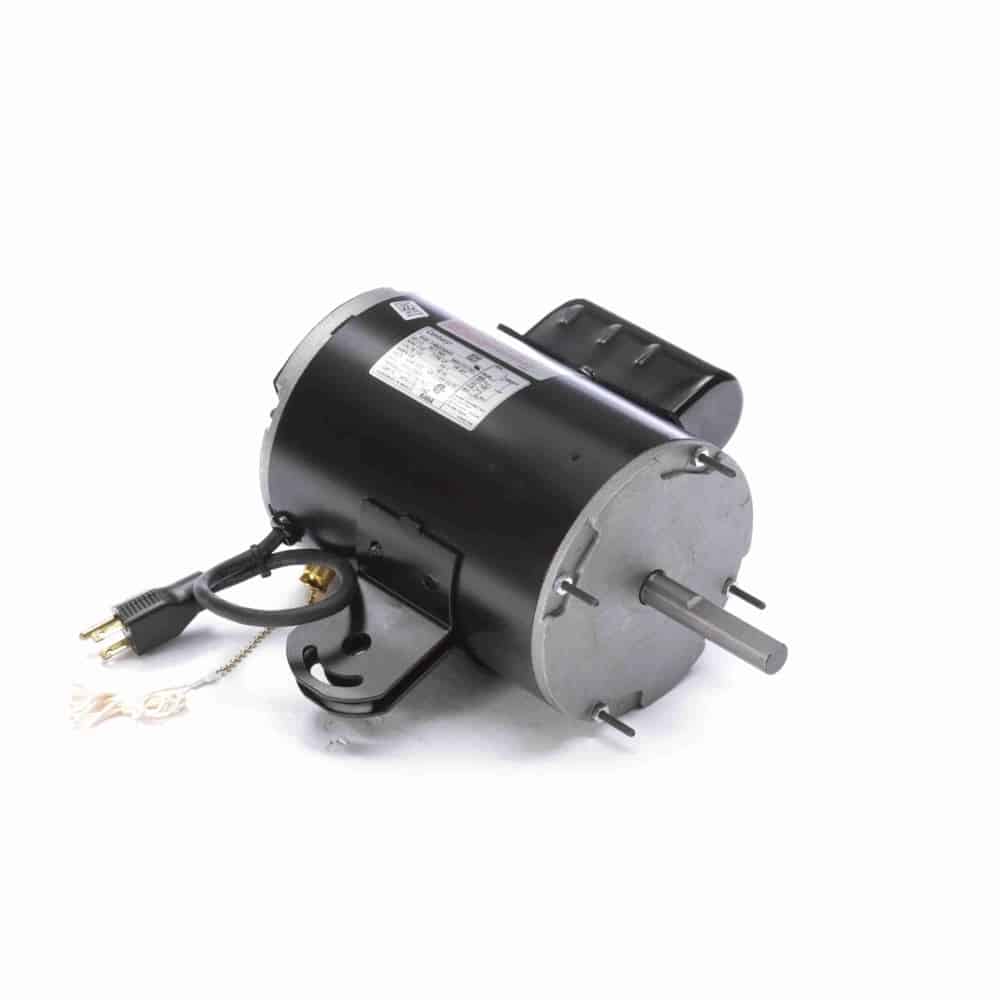

1/2HP Pedestal Fan Motor, 1 Phase, 48Y Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
648A
Wright's #
CEN 648A
Specifications
C Dim
10.86"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.6
Rated Voltage
115
Rotation
Reversible
RPM
1100
Service Factor
1
Shaft Diameter
0.625"
Speed
1100
Starting Method
Description
Pedestal Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/8″ Diameter Shaft with Flati.5″ Leads with Molded Plug
Yoke Mount
1/2HP Pedestal Fan Motor, 1 Phase, 48Y Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
