Century

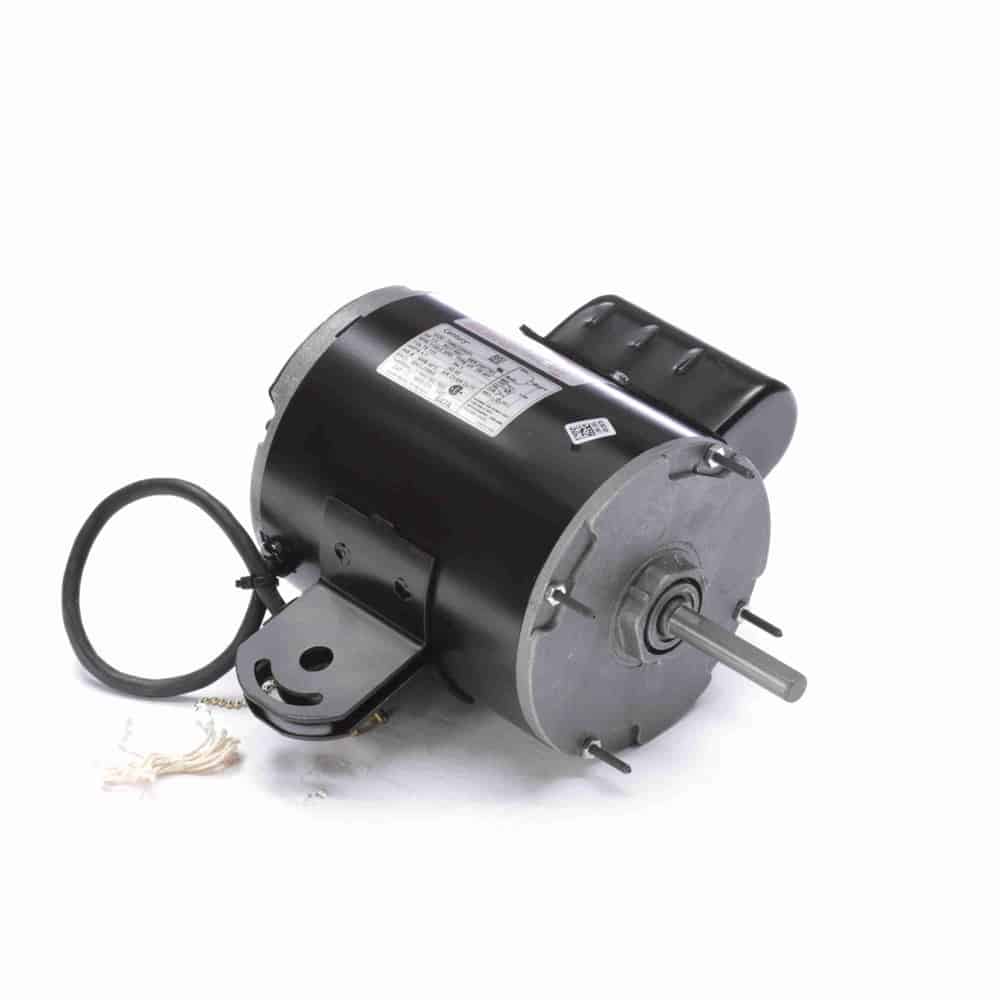

1/3HP PSC 48Y TE 2spd 1100 REV 115V 5uF-inc PFM
Mfr # 647A | Wright’s # CEN 647A
1/3HP Pedestal Fan Motor, 1 Phase, 48Y Frame, 1100 RPM, 2 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
647A
Wright's #
CEN 647A
Country of Origin
MEX
Specifications
C Dim
10.35"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
4.7
Rated Voltage
115
Rotation
Reversible
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Starting Method
Description
Pedestal Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flati.5″ Leads with Molded Plug
Yoke Mount
1/3HP Pedestal Fan Motor, 1 Phase, 48Y Frame, 1100 RPM, 2 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
