Century

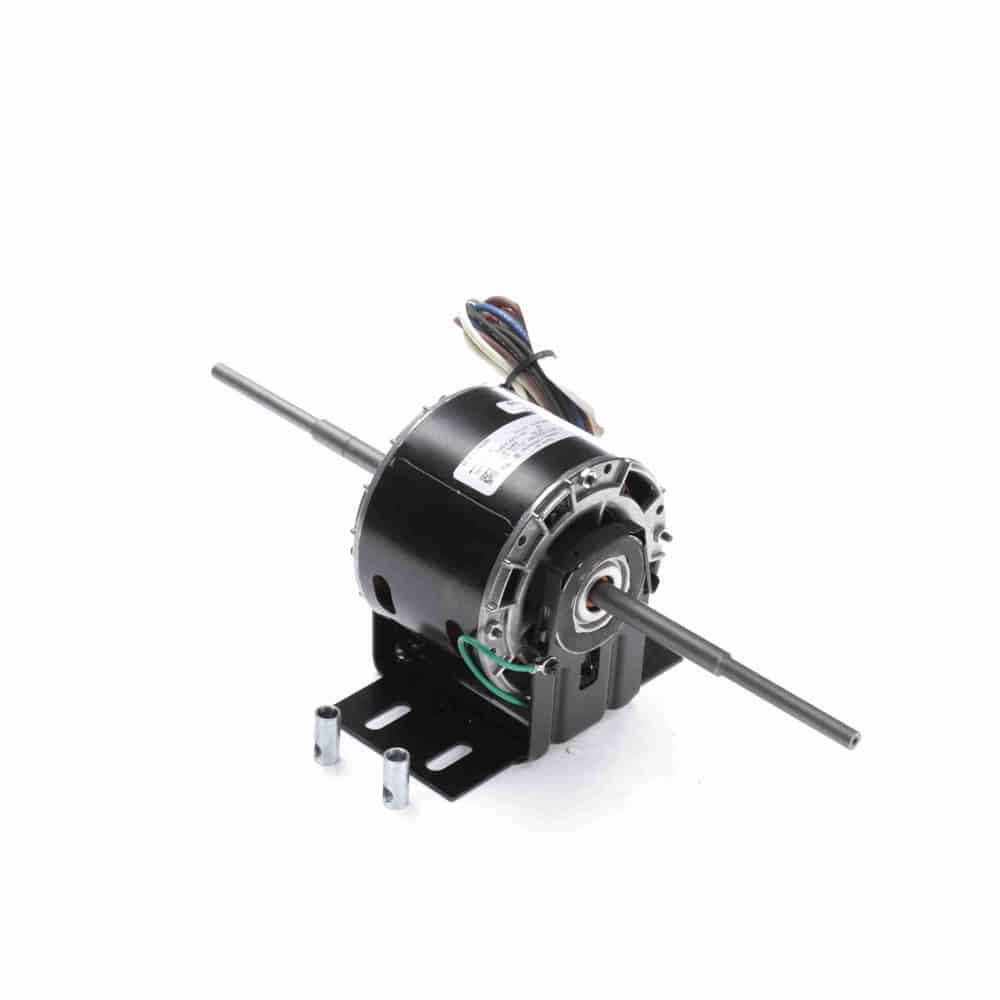

1/10HP PSC 5″ OAO 3spd 1695 CCWSE 115V 4uF OEM
Mfr # 638 | Wright’s # CEN 638
1/10HP OEM Replacement Motor, 1 Phase, 42 Frame, 1695 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$233.82
Product Information
Brand
Century
Mfr #
638
Wright's #
CEN 638
Specifications
C Dim
16.74"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
0.87
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1695
Service Factor
1
Shaft Diameter
0.5"
Speed
1695
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Double Shaft with FlatЇ” Leads
Resilient Base
1/10HP OEM Replacement Motor, 1 Phase, 42 Frame, 1695 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
