Century

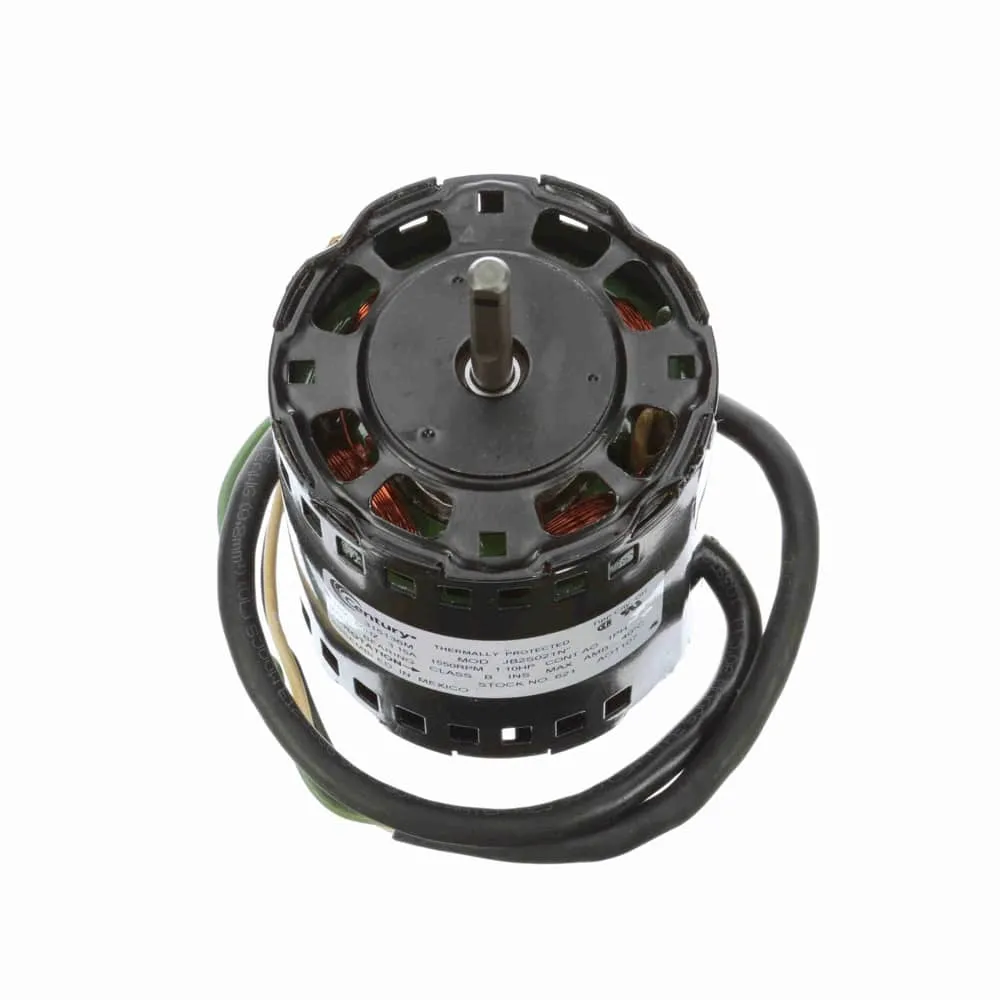

1/10HP ShP 3.3″ OAO 1550 CCWSE 115V OEM
Mfr # 621 | Wright’s # CEN 621
1/10HP OEM Replacement Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
621
Wright's #
CEN 621
Specifications
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.15
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Speed
1550
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with FlatЁ” Leads
Extended Studs Shaft End and Opposite Shaft End
1/10HP OEM Replacement Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
