Century

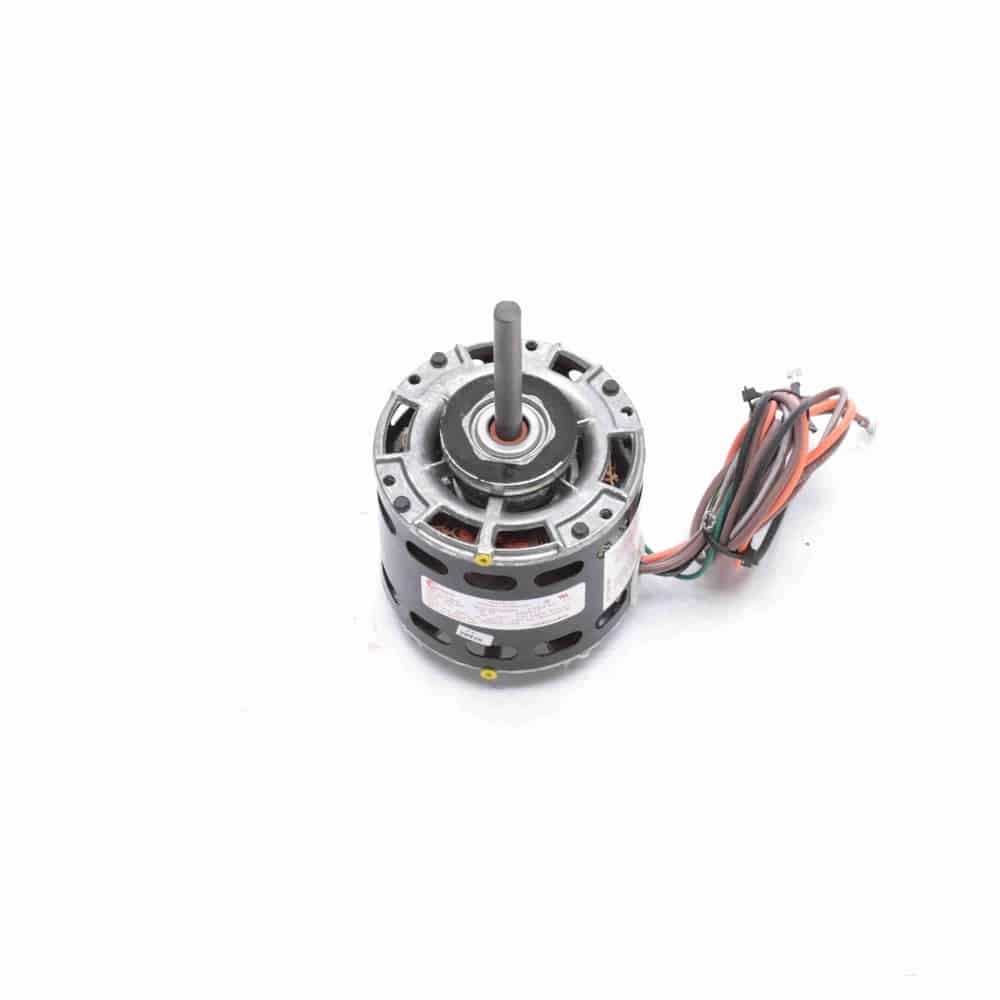

1/4HP PSC 42Y OAO 1100 CWSE 208-230V 5uF OEM
Mfr # 515 | Wright’s # CEN 515
1/4HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
515
Wright's #
CEN 515
Specifications
C Dim
9.26"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
A
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.5
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1100
Service Factor
1
Shaft Diameter
0.5"
Speed
1100
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЌ” Leads
Resilient Ring Mounting
1/4HP OEM Replacement Motor, 1 Phase, 42Y Frame, 1100 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
