Century
1/15HP ShP 4.4″ OAO 1050 CWSE 115V
Mfr # 50 | Wright’s # CEN 50

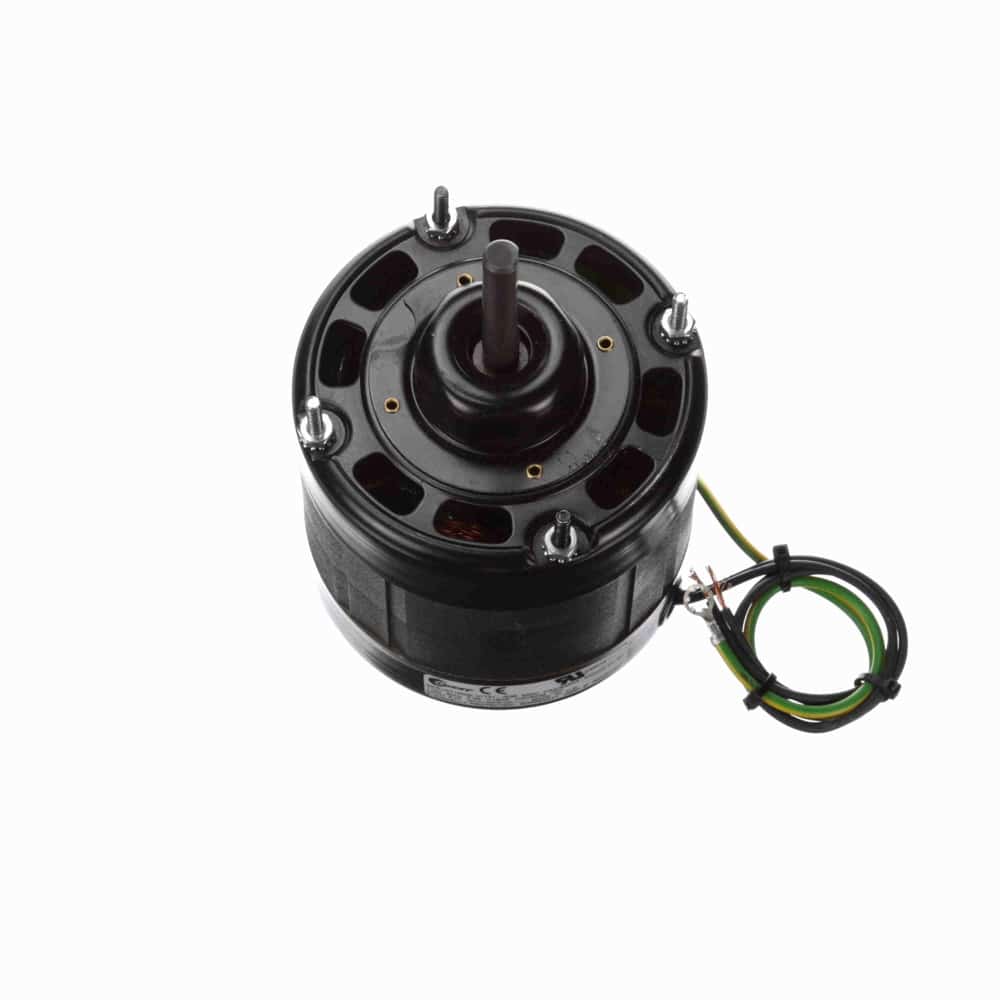

1/15HP Ventilation Motor, 1 Phase, 4.4 Frame, 1050 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
50
Wright's #
CEN 50
Country of Origin
GBR
Specifications
C Dim
6.54"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
A
kW
0.05kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.5
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1050
Service Factor
1
Shaft Diameter
0.375"
Speed
1050
Starting Method
Description
Heating – Ventilating – Welding Unit Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End. Resilient Ring Mounting
1/15HP Ventilation Motor, 1 Phase, 4.4 Frame, 1050 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
