Century

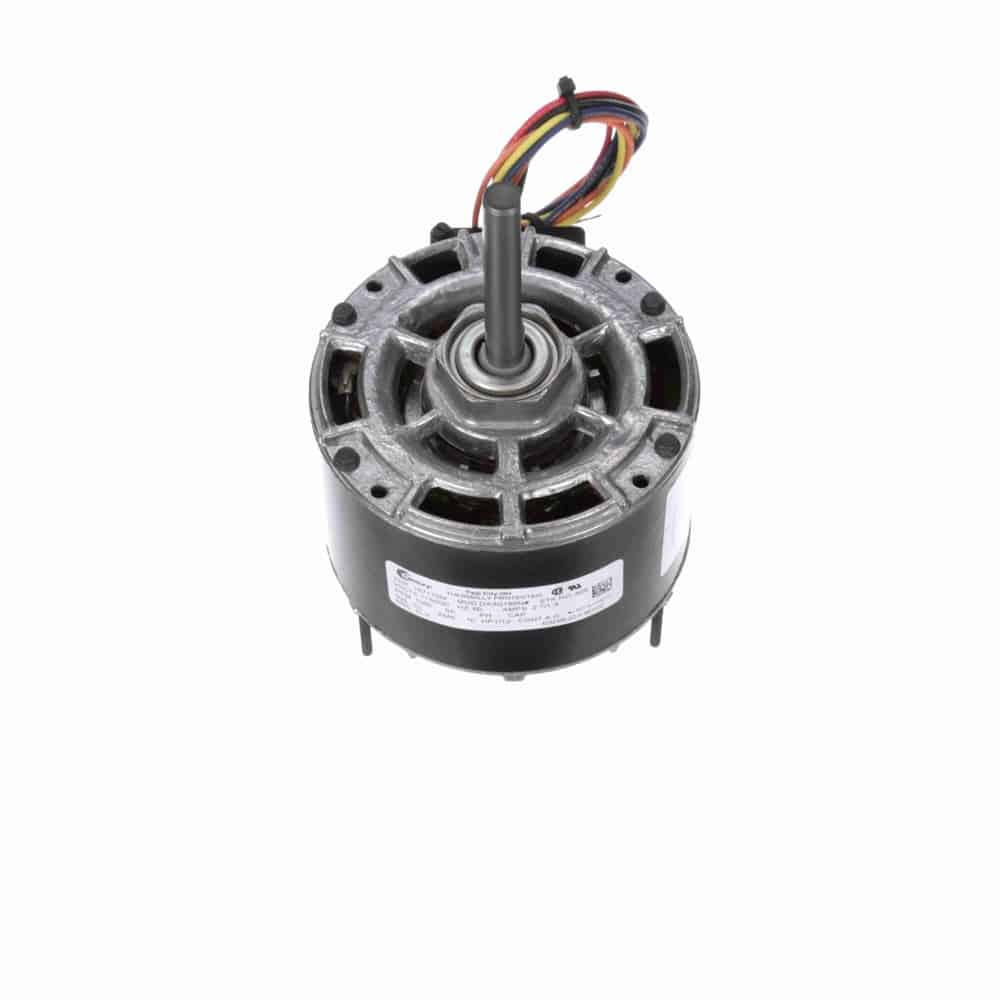

1/12HP ShP 5″ OAO 1050 CWSE 115/230V OEM
Mfr # 469 | Wright’s # CEN 469
1/12HP OEM Replacement Motor, 1 Phase, 42 Frame, 1050 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
$331.20
Product Information
Brand
Century
Mfr #
469
Wright's #
CEN 469
Country of Origin
MEX
Specifications
C Dim
8.16"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
A
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.7/1.3
Rated Voltage
115/230
Rotation
Clockwise Shaft End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
OEM Direct Replacement Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatϺ” Leads
Extended Studs Opposite Shaft End, Resilient Ring Mounting
1/12HP OEM Replacement Motor, 1 Phase, 42 Frame, 1050 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
