Century

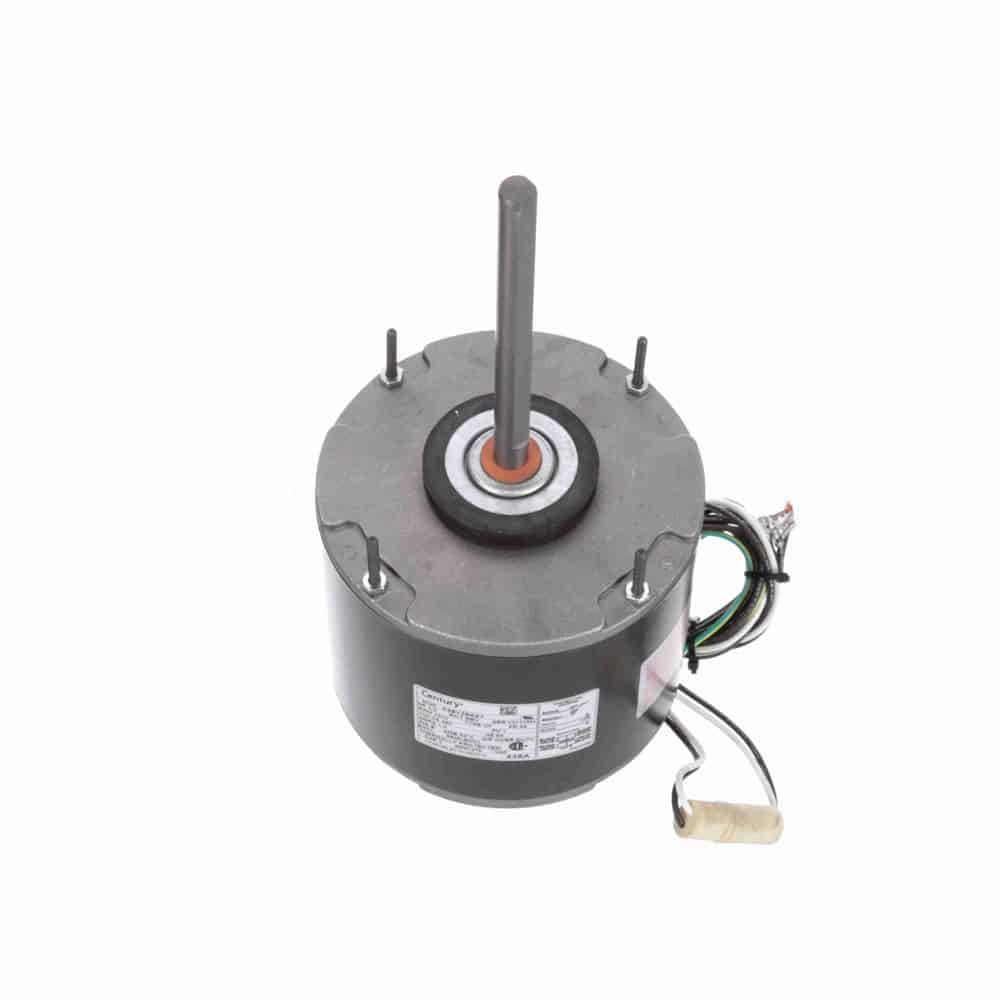

1/3HP PSC 5.6″ TE 1075 REV 460V 5uF OEM
Mfr # 436A | Wright’s # CEN 436A
1/3HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
436A
Wright's #
CEN 436A
Country of Origin
MEX
Specifications
C Dim
11.68"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1
Rated Voltage
460
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatϿ” Leads
Extended Studs Shaft End, Resilient Ring Mounting
1/3HP OEM Replacement Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure
