Century
1/25HP ShP 3.3″ TE 1550 CWSE 208-230V
Mfr # 432 | Wright’s # CEN 432

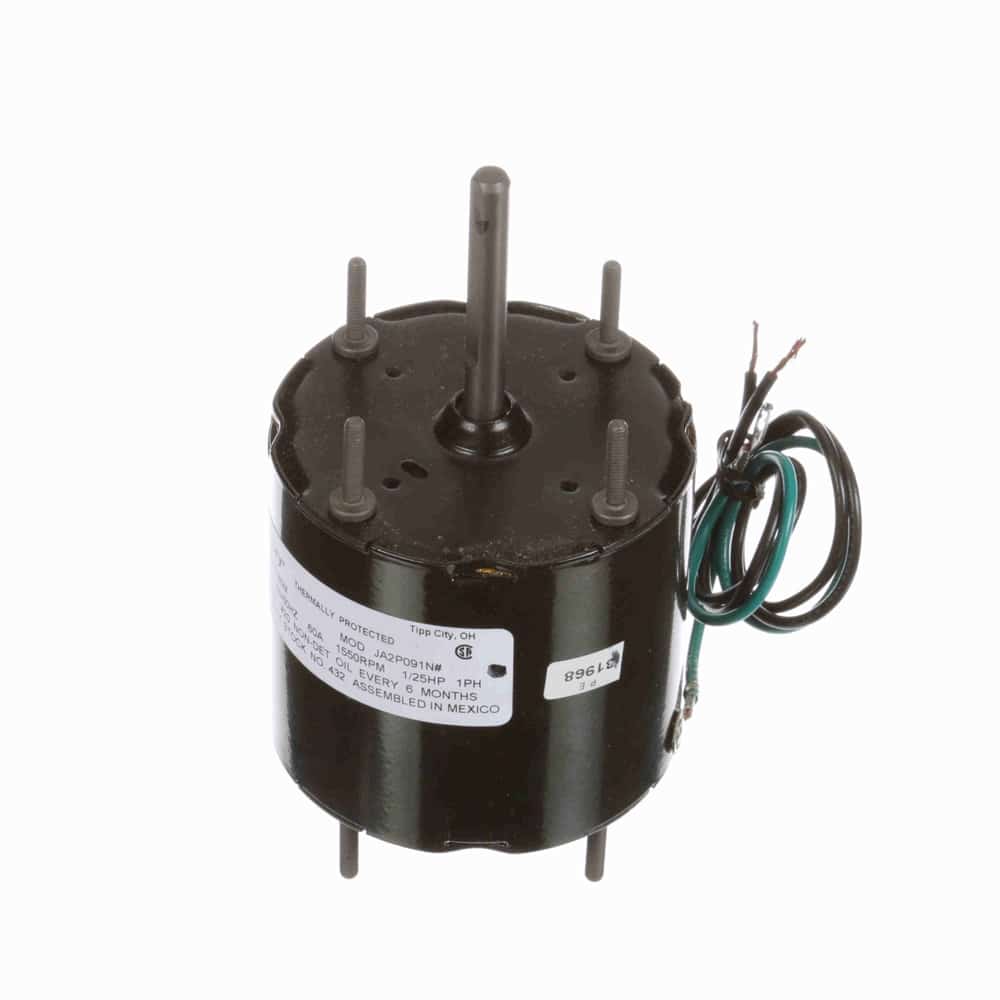

1/25HP Ventilation Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, TEAO Enclosure
$142.51
Product Information
Brand
Century
Mfr #
432
Wright's #
CEN 432
Specifications
Electrical Type
Shaded Pole
Enclosure
TEAO
Frame
3.3
Frequency
50 Hz
HP
0.04 HP
HP2
1/25 HP
Insulation Class
A
kW
0.03kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.6
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Speed
1550
Starting Method
Description
Fan and Blower Duty Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End and Opposite Shaft End, Resilient Ring Mounting
1/25HP Ventilation Motor, 1 Phase, 3.3 Frame, 1550 RPM, 1 Speed, Shaded Pole, 208-230V, TEAO Enclosure
