Century

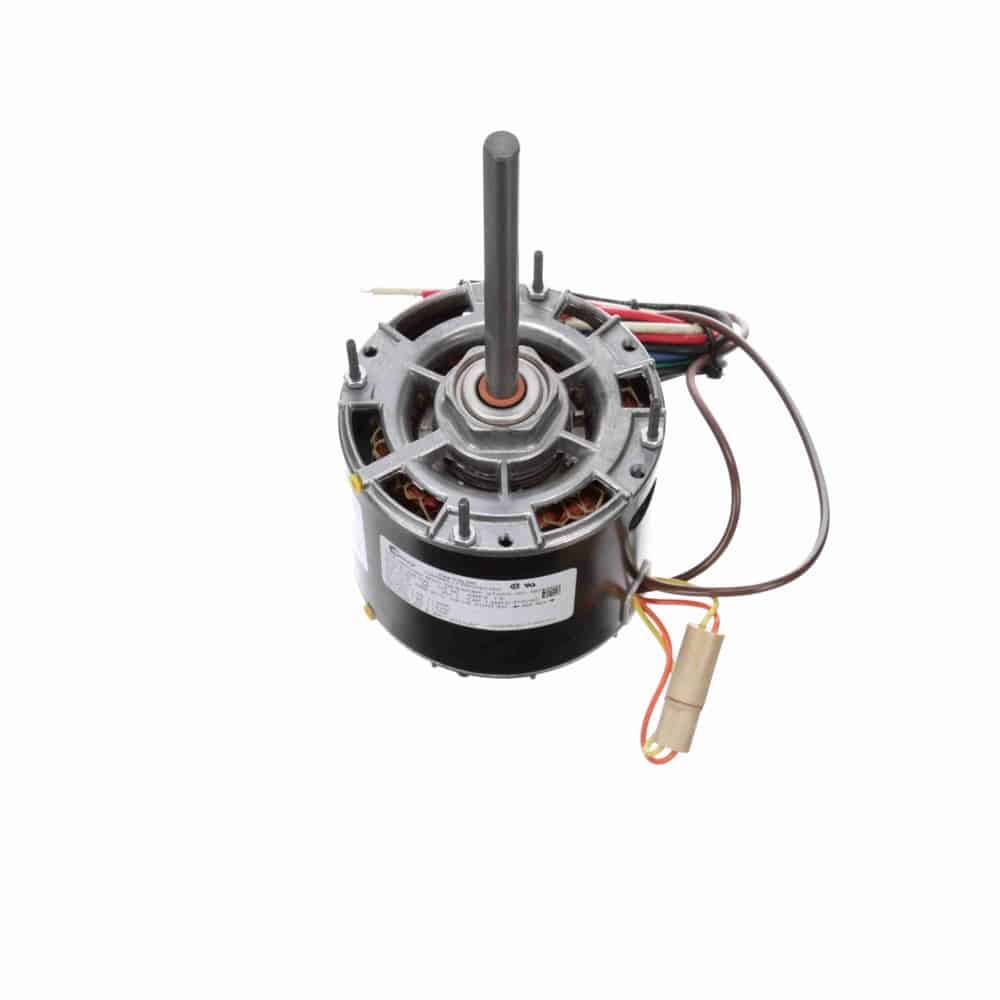

1/4HP PSC 5″ OAO 3spd 1050 REV 208-230V 5uF BM
Mfr # 391 | Wright’s # CEN 391
1/4-1/5-1/7HP Fan & Blower Motor, 1 Phase, 42 Frame, 1050 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
391
Wright's #
CEN 391
Country of Origin
MEX
Specifications
C Dim
10.72"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.25 HP
HP2
1/4-1/5-1/7 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.70, 1.31, 1.10
Rated Voltage
208-230
Rotation
Reversible
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
Furnace Blower – Air Handler – Fan Coil – Air Conditioning Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЇ” Leads
Extended Studs Shaft End, Resilient Ring Mounting
1/4-1/5-1/7HP Fan & Blower Motor, 1 Phase, 42 Frame, 1050 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
