Century
1/15HP ShP 5″ OAO 4spd 1050 CCWSE 115V
Mfr # 389 | Wright’s # CEN 389
1/15-1/20-1/30-1/50HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1050 RPM, 4 Speed, Shaded Pole, 115V, OAO Enclosure
$189.09
Product Information
Brand
Century
Mfr #
389
Wright's #
CEN 389
Country of Origin
MEX
Specifications
C Dim
24.88"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
50 Hz
HP
0.07 HP
HP2
1/15-1/20-1/30-1/50 HP
Insulation Class
A
kW
0.05kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
2.4
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description

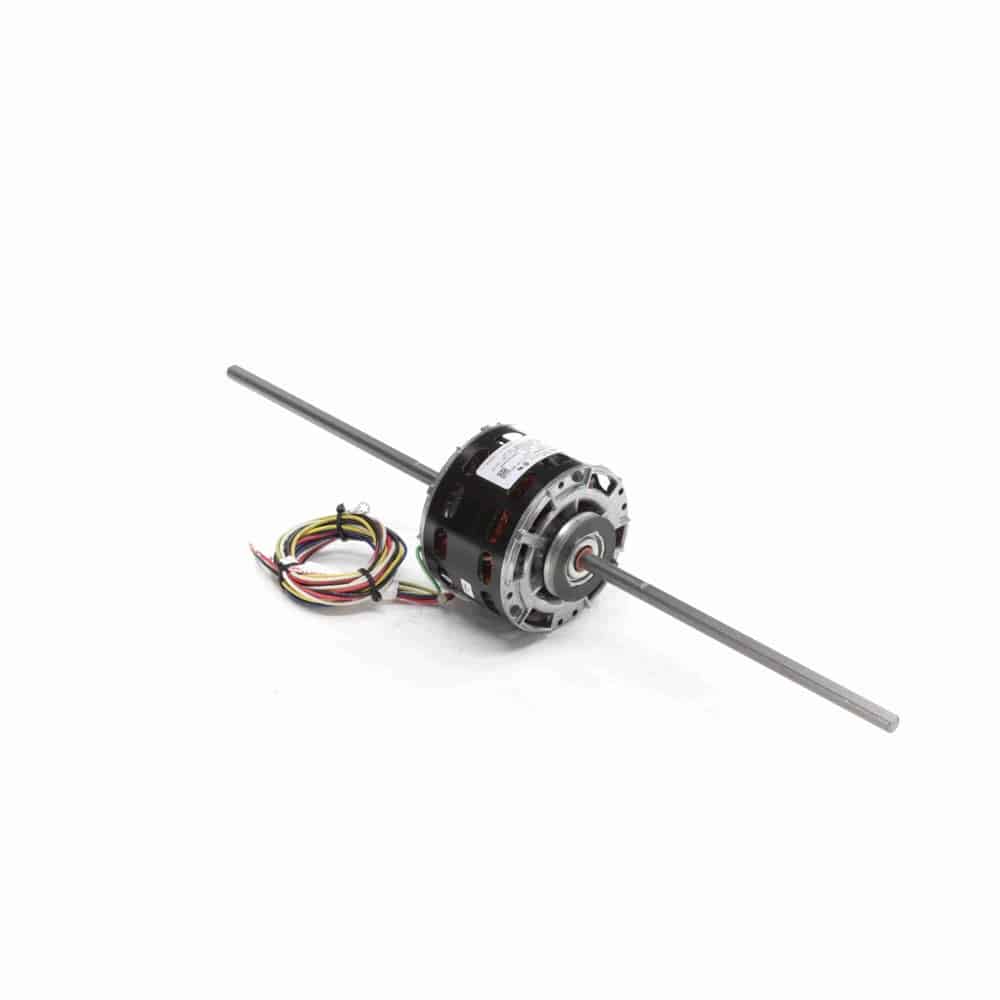

Fan Coil – Dual Wheel Blower Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatО” Leads
Resilient Ring Mounting
1/15-1/20-1/30-1/50HP Fan Coil & Air Conditioner Motor, 1 Phase, 42 Frame, 1050 RPM, 4 Speed, Shaded Pole, 115V, OAO Enclosure
