Century
1/20HP ShP 4.4″ ODP 4spd 1550 CCWSE 115V
Mfr # 364 | Wright’s # CEN 364

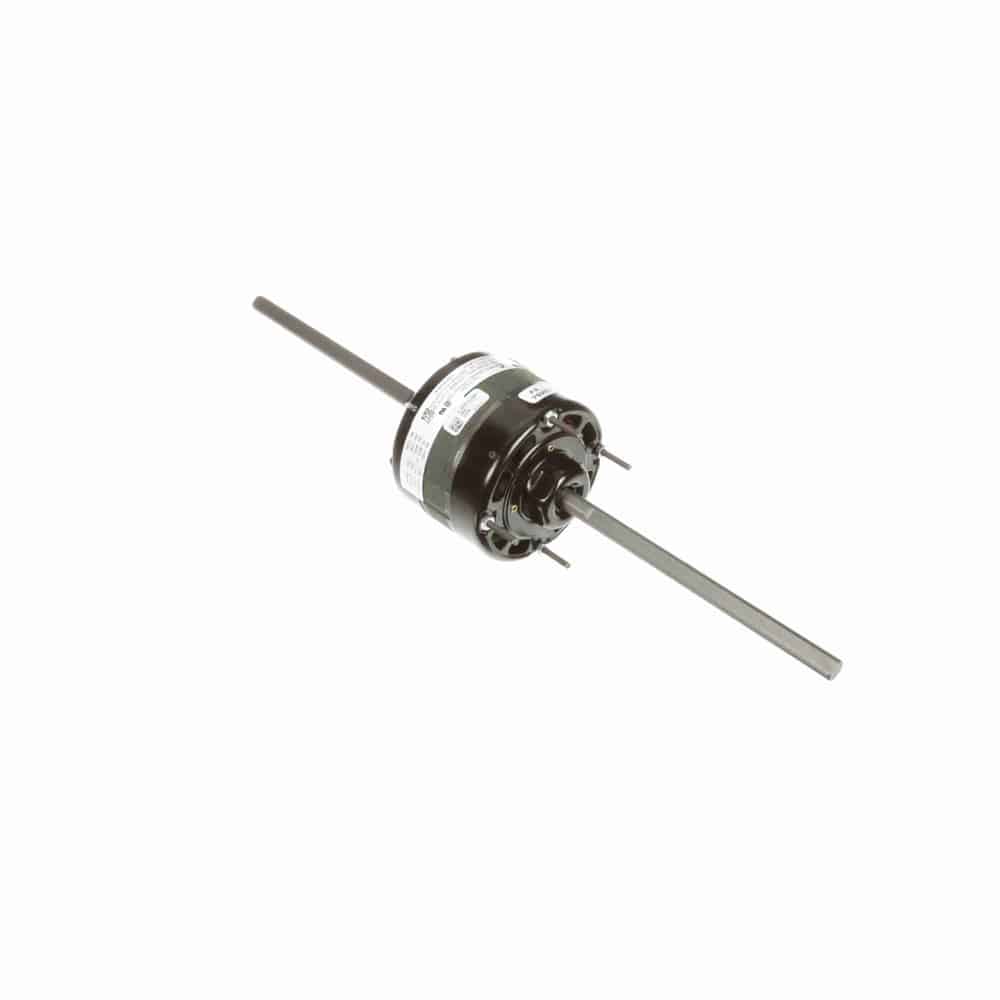

1/20-1/30-1/40-1/60HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4 Frame, 1550 RPM, 4 Speed, Shaded Pole, 115V, ODP Enclosure
$239.26
Product Information
Brand
Century
Mfr #
364
Wright's #
CEN 364
Specifications
C Dim
19.25"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
4.4
Frequency
60 Hz
HP
0.05 HP
HP2
1/20-1/30-1/40-1/60 HP
Insulation Class
B
kW
0.04kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
1.8/1.3/.95/.70
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550
Starting Method
Description
Fan Coil Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЌ” Leads
Extended Studs Opposite Lead End, Resilient Ring Mounting
1/20-1/30-1/40-1/60HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4 Frame, 1550 RPM, 4 Speed, Shaded Pole, 115V, ODP Enclosure
