Century

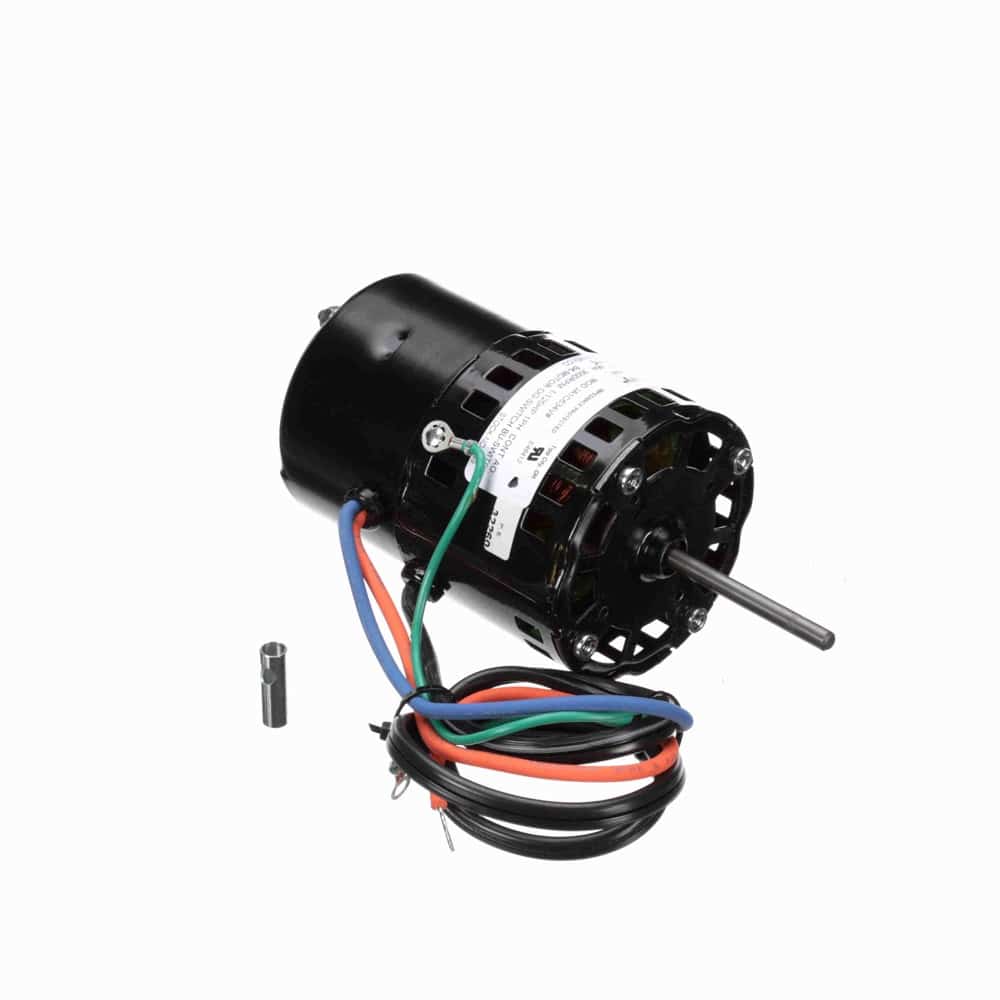

1/125HP ShP 3.3″ OAO 3000 CWSE 115V OEM
Mfr # 349 | Wright’s # CEN 349
1/125HP OEM Replacement Motor, 1 Phase, 3.3 Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$160.37
Product Information
Brand Century
Mfr # 349
Wright's # CEN 349
Specifications
Electrical Type Shaded Pole
Enclosure OAO
Frame 3.3
Frequency 60 Hz
HP 0.01 HP
HP2 1/125 HP
Insulation Class A
kW 0.01kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Impedance
Phase 1
Rated Current 0.46
Rated Voltage 115
Rotation Clockwise Shaft End
RPM 3000
Service Factor 1
Shaft Diameter 0.25"
Speed 3000
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Impedance Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with 5/16″ BushingЀ” Leads
Extended Studs Shaft End and Opposite Shaft End, Resilient Ring Mounting
1/125HP OEM Replacement Motor, 1 Phase, 3.3 Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
