Century

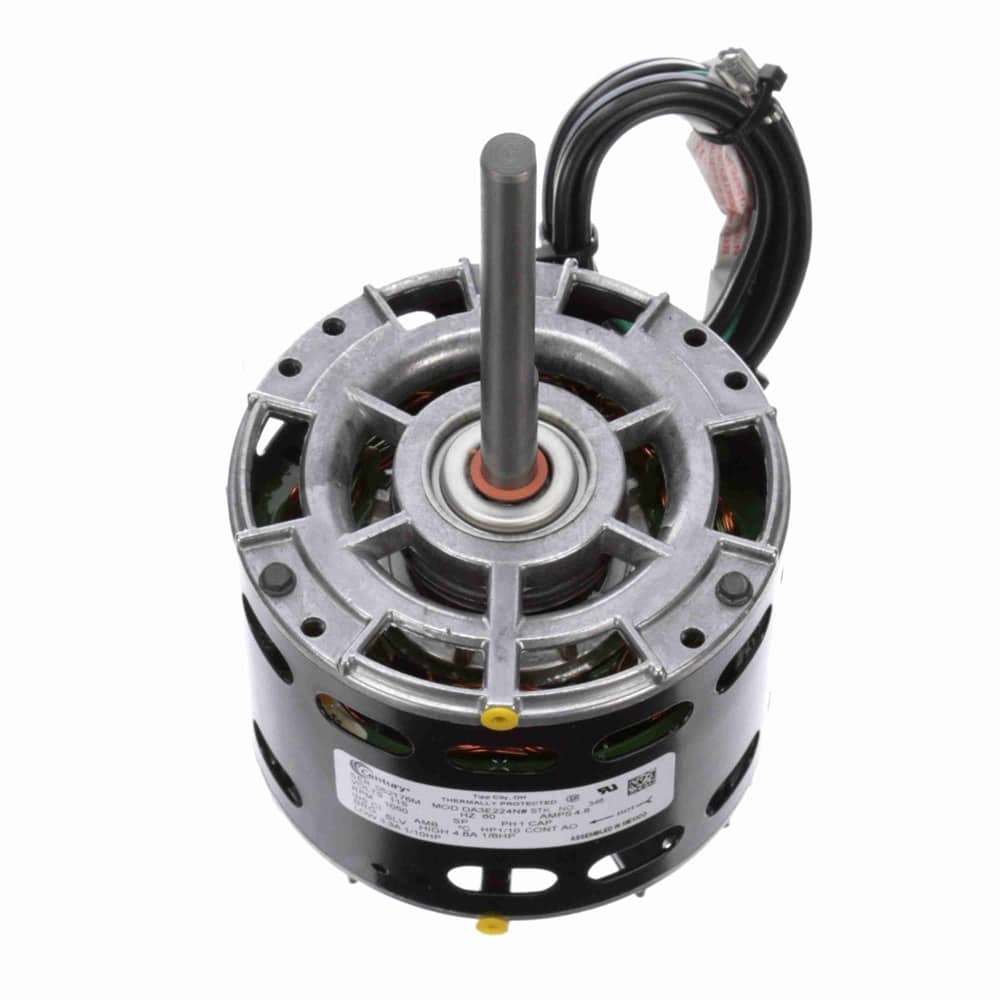

1/8HP ShP 5″ OAO 2spd 1050 CWSE 115V BM
Mfr # 346 | Wright’s # CEN 346
1/8-1/10HP Fan & Blower Motor, 1 Phase, 42 Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
346
Wright's #
CEN 346
Country of Origin
MEX
Specifications
C Dim
8.46"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
42
Frequency
60 Hz
HP
0.13 HP
HP2
1/8-1/10 HP
Insulation Class
A
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
4.8
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЈ” Leads
Tapped Holes for Coleman Mount
1/8-1/10HP Fan & Blower Motor, 1 Phase, 42 Frame, 1050 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
