Century
1/25HP ShP 4.4″ ODP 1550 CWSE 115V
Mfr # 322 | Wright’s # CEN 322

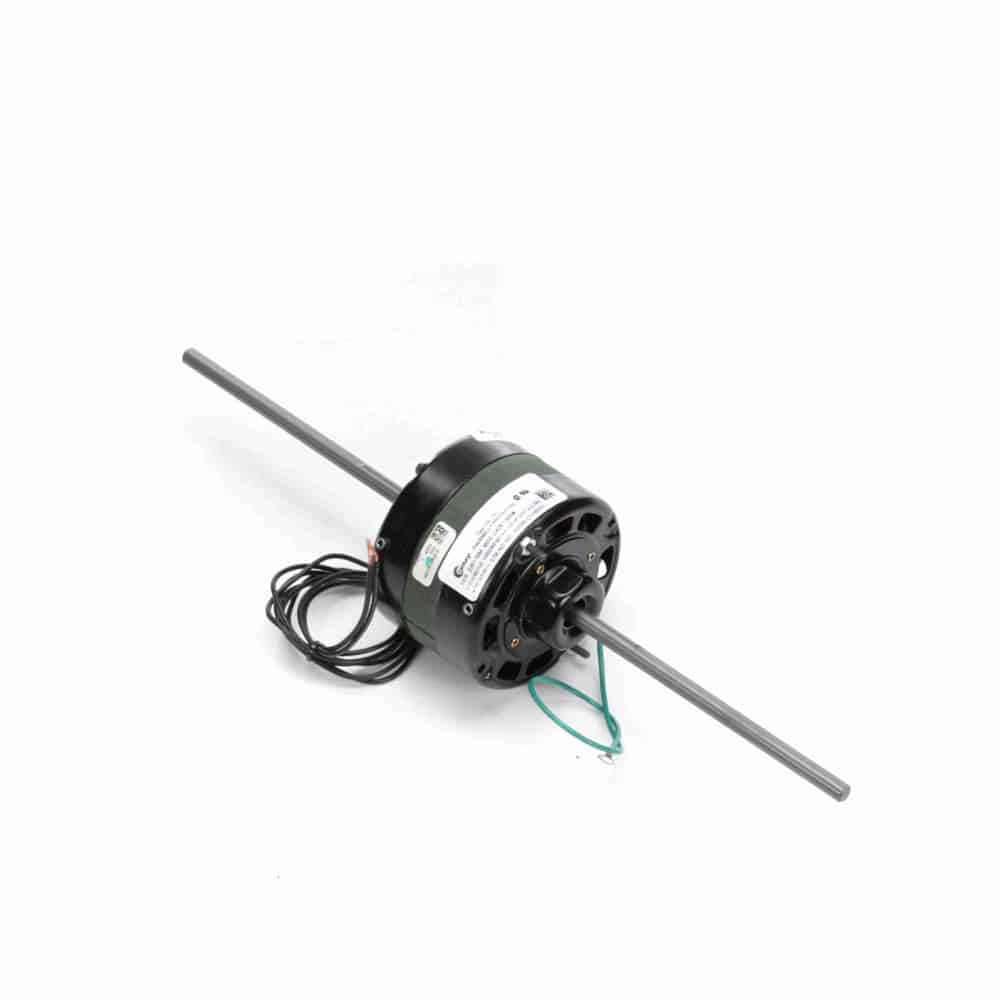

1/25HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4 Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, ODP Enclosure
$219.46
Product Information
Brand
Century
Mfr #
322
Wright's #
CEN 322
Country of Origin
MEX
Specifications
C Dim
17.5"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
4.4
Frequency
60 Hz
HP
0.04 HP
HP2
1/25 HP
Insulation Class
B
kW
0.03kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Speed
1550
Starting Method
Description
Fan Coil Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Double Shaft with FlatЌ” Leads
Extended Studs Lead End, Resilient Ring Mounting
1/25HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4 Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, ODP Enclosure
