Century

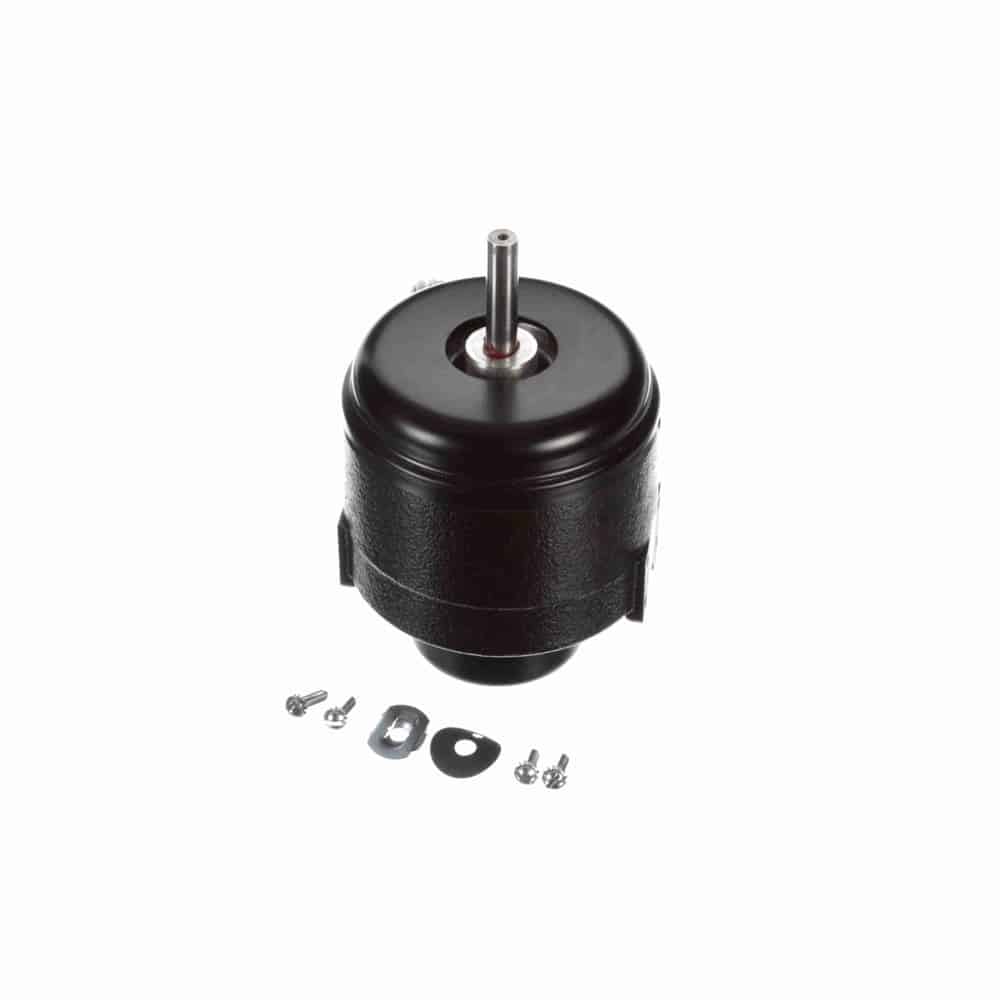

50W ShP 1500 CCWLE 115V 1.7A CI
Mfr # 259 | Wright’s # CEN 259
HP 50W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
$155.03
Product Information
Brand
Century
Mfr #
259
Wright's #
CEN 259
Specifications
Electrical Type
Shaded Pole
Enclosure
TEAO
Frame
UNIT BEARING
Frequency
60 Hz
Insulation Class
A
Material
Cast Iron
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.7
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1500
Service Factor
1
Shaft Diameter
0.375"
Speed
1500
Starting Method
Watt
50
Description
Refrigeration Motor
Unit Bearing
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Bearing – Unit
3/8″ Diameter Shaft with FlatϾ” Leads
Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
HP 50W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
