Century

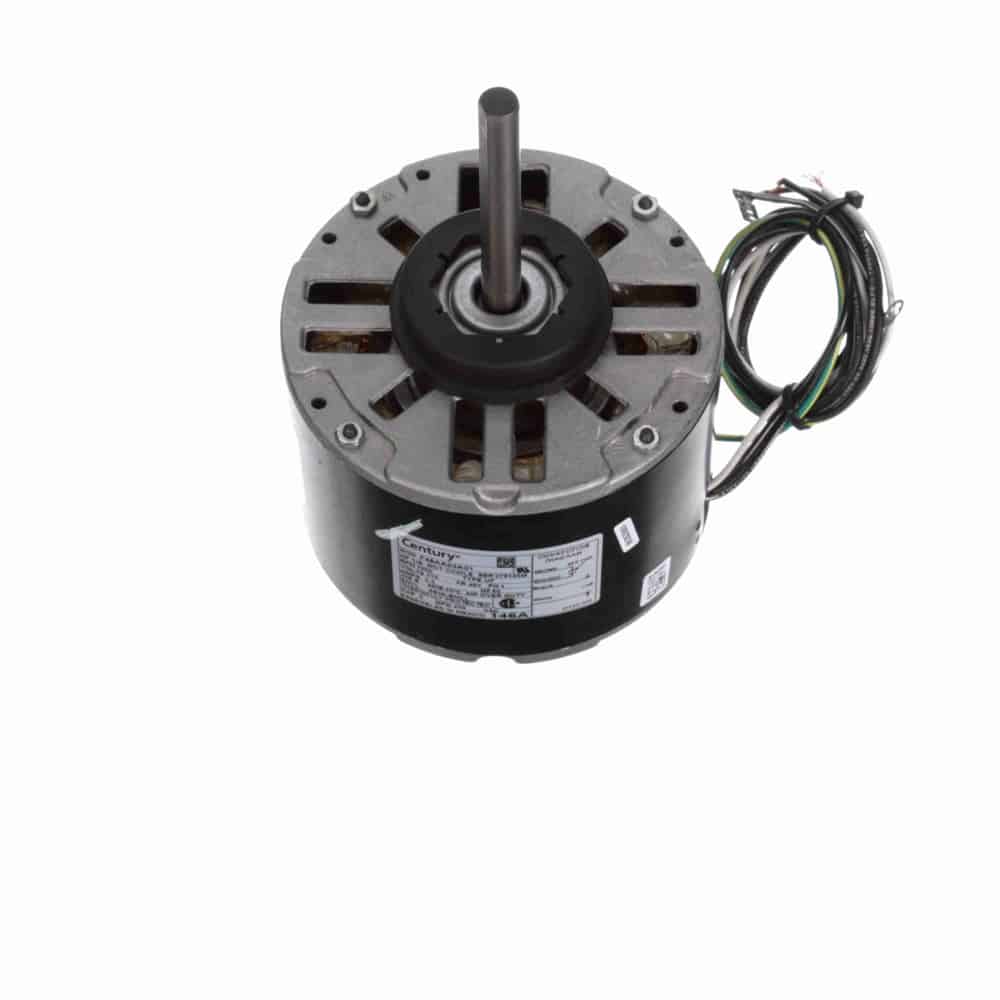

1/6HP PSC 48Y TE 1050 CWSE 115V 5uF BM
Mfr # 146A | Wright’s # CEN 146A
1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1050 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
146A
Wright's #
CEN 146A
Specifications
C Dim
8.7"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.3
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
Heating – Air Conditioning Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Resilient Ring Mounting, Belly Band Mount
1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1050 RPM, 1 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
