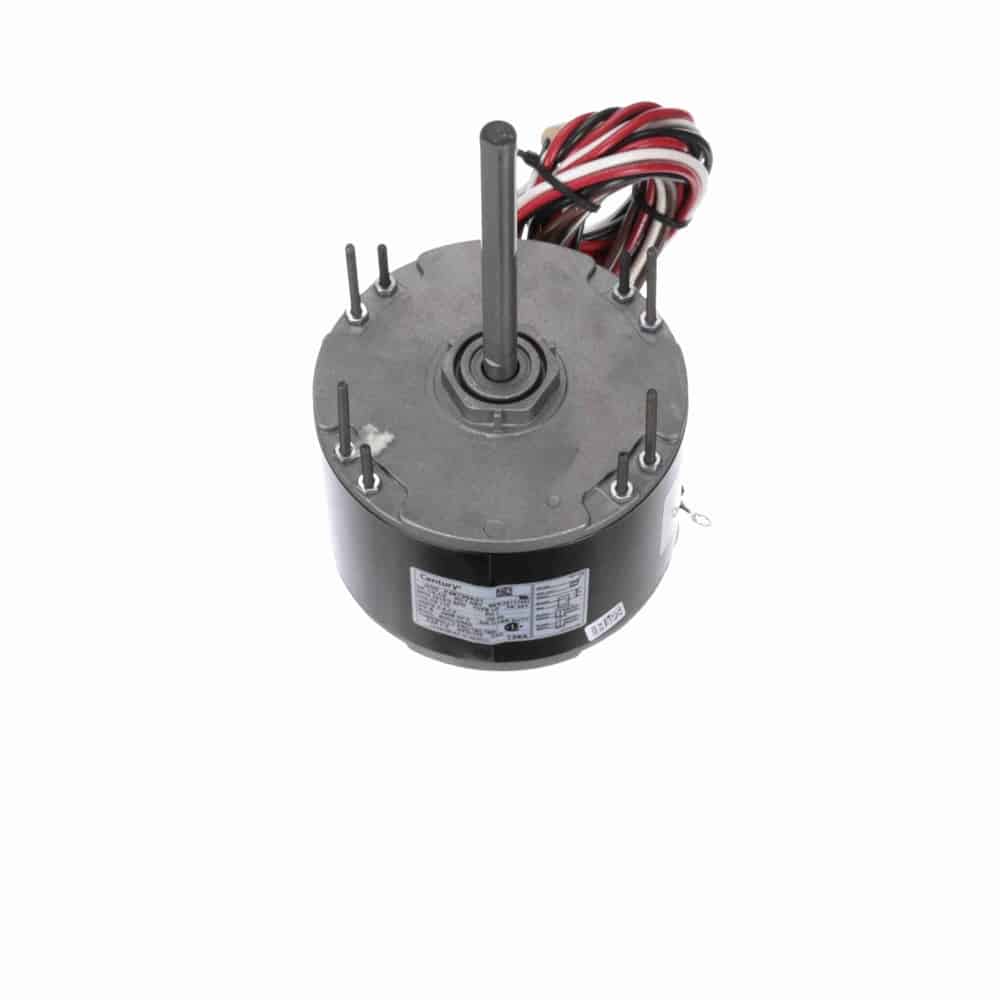

Century
1/6HP PSC 48Y TE 2spd 1075 REV 115V 5uF
Mfr # 136A | Wright’s # CEN 136A
1/6-1/8HP Unit Heater Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
$315.78
Product Information
Brand
Century
Mfr #
136A
Wright's #
CEN 136A
Country of Origin
MEX
Specifications
C Dim
9.68"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.17 HP
HP2
1/6-1/8 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
2.4,1.6
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Unit Heater Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End, Resilient Ring Mounting
1/6-1/8HP Unit Heater Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
