Baldor

0.5HP 3PH 56C 1800 TENV INV WD WB

Mfr # IDCSWDM3538 | Wright’s # BAL IDCSWDM3538

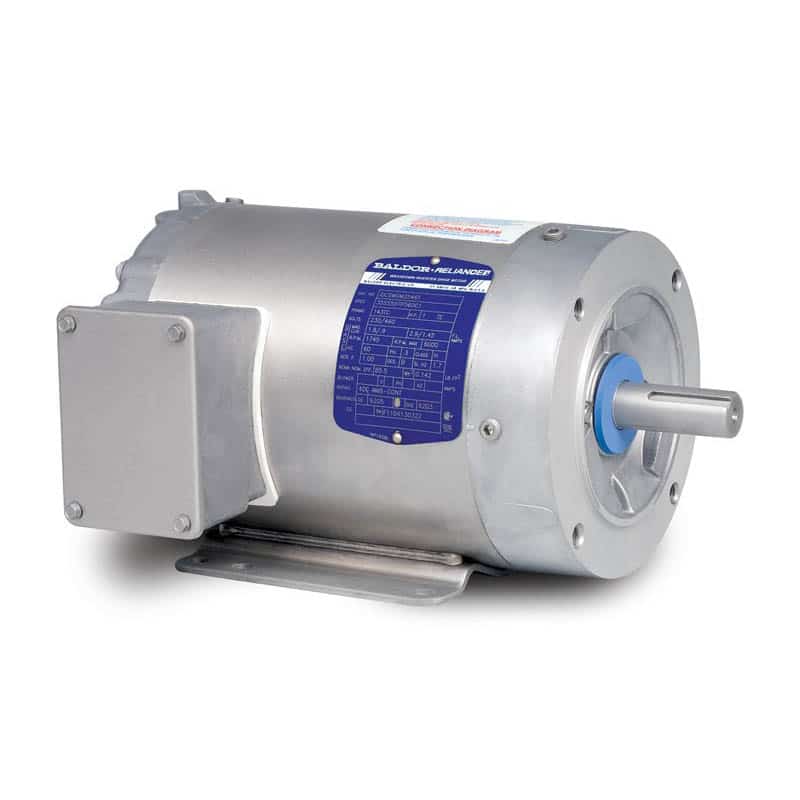

1/2HP 3-Phase Inverter Duty Washdown Motor, 56C Frame, 208-230/460V, 1800 RPM, TENV Enclosure

Out of stock

$1,654.99

Product Information

Brand Baldor
Mfr # IDCSWDM3538
Wright's # BAL IDCSWDM3538

Specifications

Bore Diameter 0.625"
Enclosure TENV
Frame 56C
Frequency 60 Hz
HP 0.5 HP
kW 0.37kW
Material Stainless Steel
Phase 3
Rated Current 1.7
Rated Voltage 208-230/460
RPM 1800

Description

Baldor-Reliance® Washdown duty motors are designed to meet the demands of applications that require additional protection from contaminants, and the ability to operate in an environments exposed to washdown methods. As the broadest washdown product family in the marketplace, ABB offers motors from painted to stainless steel to meet the washdown needs of our customers.

Key Features:
• Double sealed motor bearings
• Neoprene rubber gaskets ensure a tight, waterproof seal
• 300 series stainless steel shaft, hardware and nameplate
• Shaft seals on each end
• Sealed frame to endplate joints to prevent water entry
• Easily removable drain plus for thorough drainage in any position
