Baldor
25HP 3PH 256T 3600 ODP
Mfr # EM2516T | Wright’s # BAL EM2516T

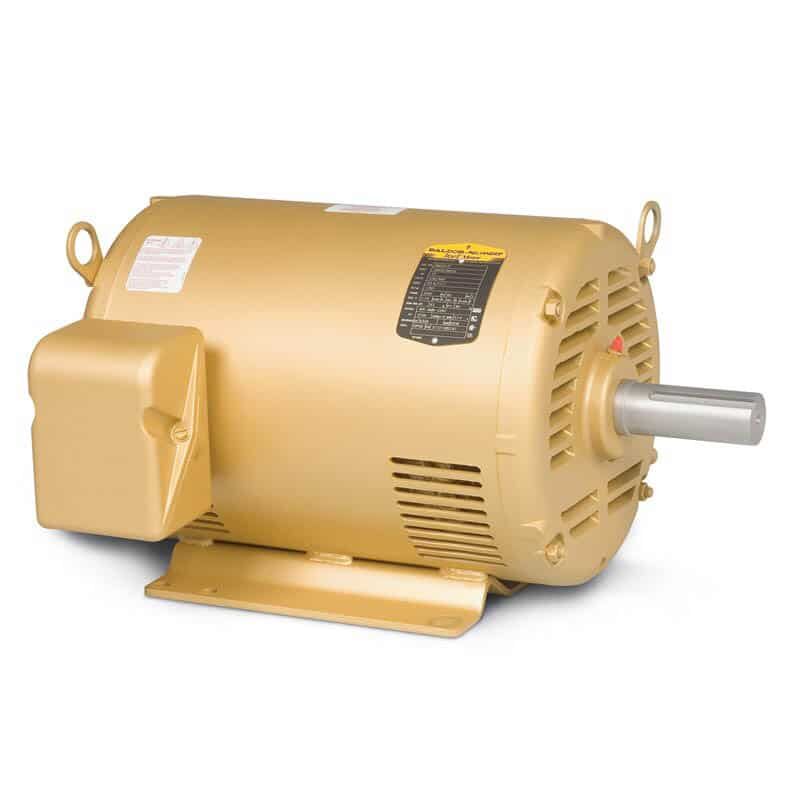

25HP 3-Phase General Purpose Motor, 256T Frame, 230-460V, 3600 RPM, ODP Enclosure, NEMA “T” Frame Dimensions
Contact Us For Pricing
Product Information
Brand Baldor
Mfr # EM2516T
Wright's # BAL EM2516T
Specifications
Bore Diameter 1.625"
Enclosure ODP
Frame 256T
Frequency 60 Hz
HP 25 HP
kW 18.64kW
Material Steel
Phase 3
Rated Current 56.0
Rated Voltage 230-460
RPM 3600
Service Factor 1.15
Description
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability.
Key Features:
• Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations.
• Super-E® motors suitable for inverter use per NEMA MG1 Part 31.4.4.2
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
