Baldor
0.25HP 3PH 48YZ 1200 TEAO HVAC AOL
Mfr # CHM164A | Wright’s # BAL CHM164A

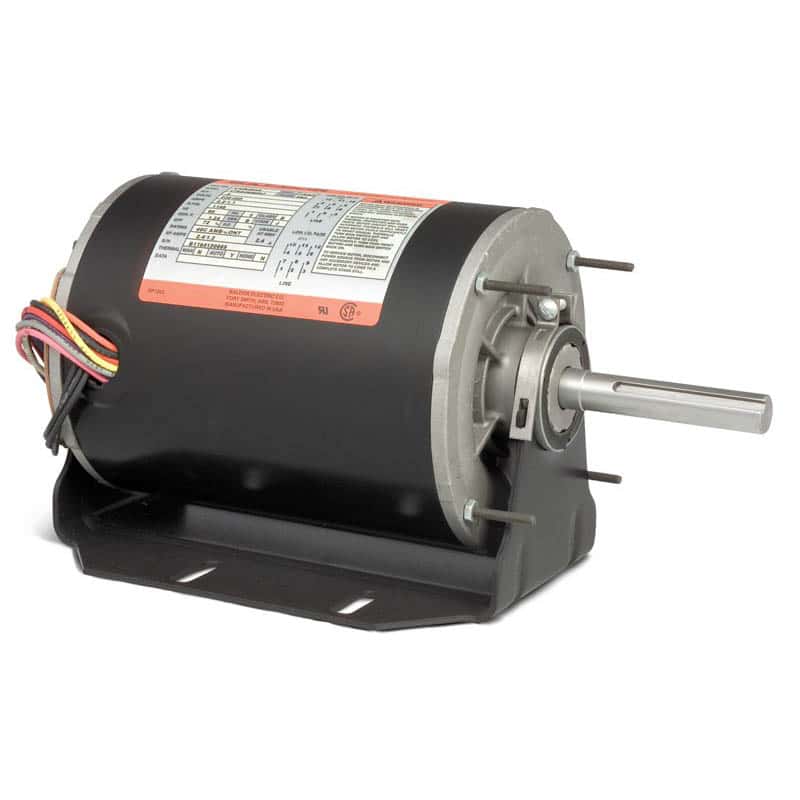

1/4HP 3-Phase Direct Drive Fan Motor, 48YZ Frame, 230-460V, 1200 RPM, TEAO Enclosure, Automatic Thermal Overload
$435.45
Product Information
Brand
Baldor
Mfr #
CHM164A
Wright's #
BAL CHM164A
Specifications
Bore Diameter
0.5"
Enclosure
TEAO
Frame
48YZ
Frequency
60 Hz
HP
0.25 HP
kW
0.19kW
Material
Steel
Phase
3
Rated Current
1.3
Rated Voltage
230-460
RPM
1200
Description
Baldor-Reliance® HVAC motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly, and efficiently, which means better system reliability and performance, with less maintenance.
Key Features:
• Dynamically balanced rotor to reduce noise and increase bearing life
• Color coded and numbered leads for ease of connectivity
• Bar code spec number for easy identification
• Low noise vibration dampening bases
• Baldor-Reliance motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations
