7-1/2HP 3PH 213JM TEFC 1800 230/460V WB
Mfr # PEWWE7.5-18-213JM | Wright’s # WWE PEWWE7.5-18-213JM

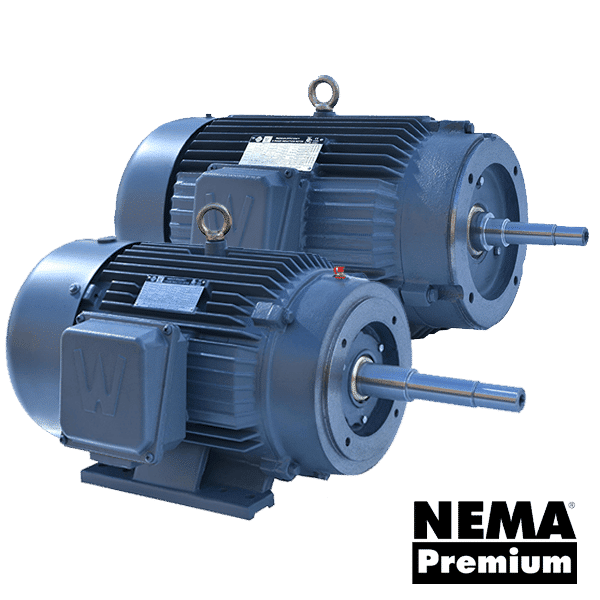

7-1/2HP Close-Coupled Pump Motor, 3 Phase, 213JM Frame, 1800 RPM, 230/460V, TEFC Enclosure
$925.29
Product Information
Brand
Worldwide
Mfr #
PEWWE7.5-18-213JM
Wright's #
WWE PEWWE7.5-18-213JM
Country of Origin
USA
Specifications
Electrical Type
Capacitor Start Capacitor Run
Enclosure
TEFC
Full Load Efficiency
91.7
Frame
213JM
HP
7.5 HP
HP2
7-1/2 HP
Insulation Class
F
kW
5.59kW
Mounting Type
Rigid Base
Phase
3
Rated Current
9.1
Rated Voltage
230/460
RPM
1800
Service Factor
1.15
Description
– 230/460 Volt
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP55 Protection
– 1.15 SF
– Class F Insulation
– C-Face with Feet
– Premium Efficiency
– Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
– Spike Resistant Wire, per NEMA MG-1, Part 31
– Class 1, Division 2, Groups A, B, C, D
– Suitable for 50 Hz, 200/400V with 1.0 SF
