Leeson
0.75HP 1PH 56C 4P TEFC 1725 115/230V WB
Mfr # 112528.00 | Wright’s # LSN 112528.00

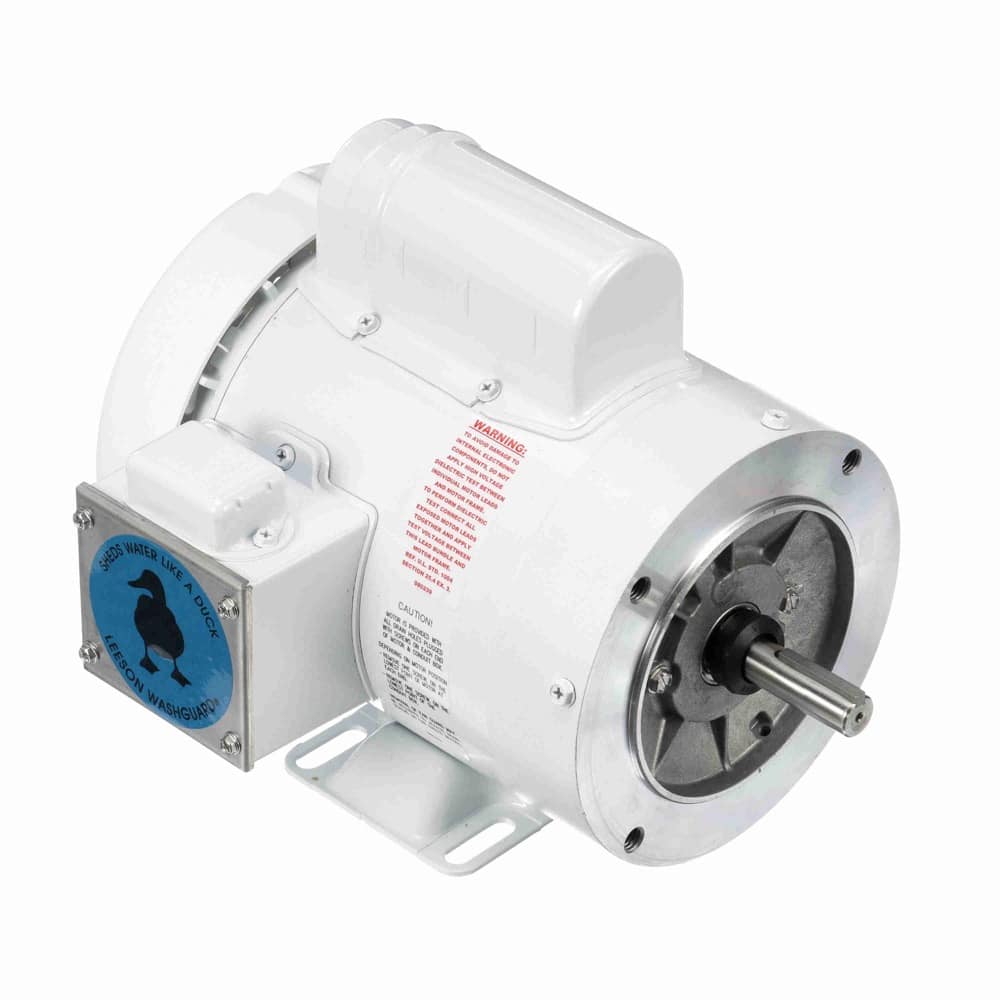

3/4HP Painted Epoxy Coated Washdown Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
$543.92
Product Information
Brand
Leeson
Mfr #
112528.00
Wright's #
LSN 112528.00
Country of Origin
USA
Specifications
C Dim
11.62"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
70
Frame
56C
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
10.8/5.4
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
