Century

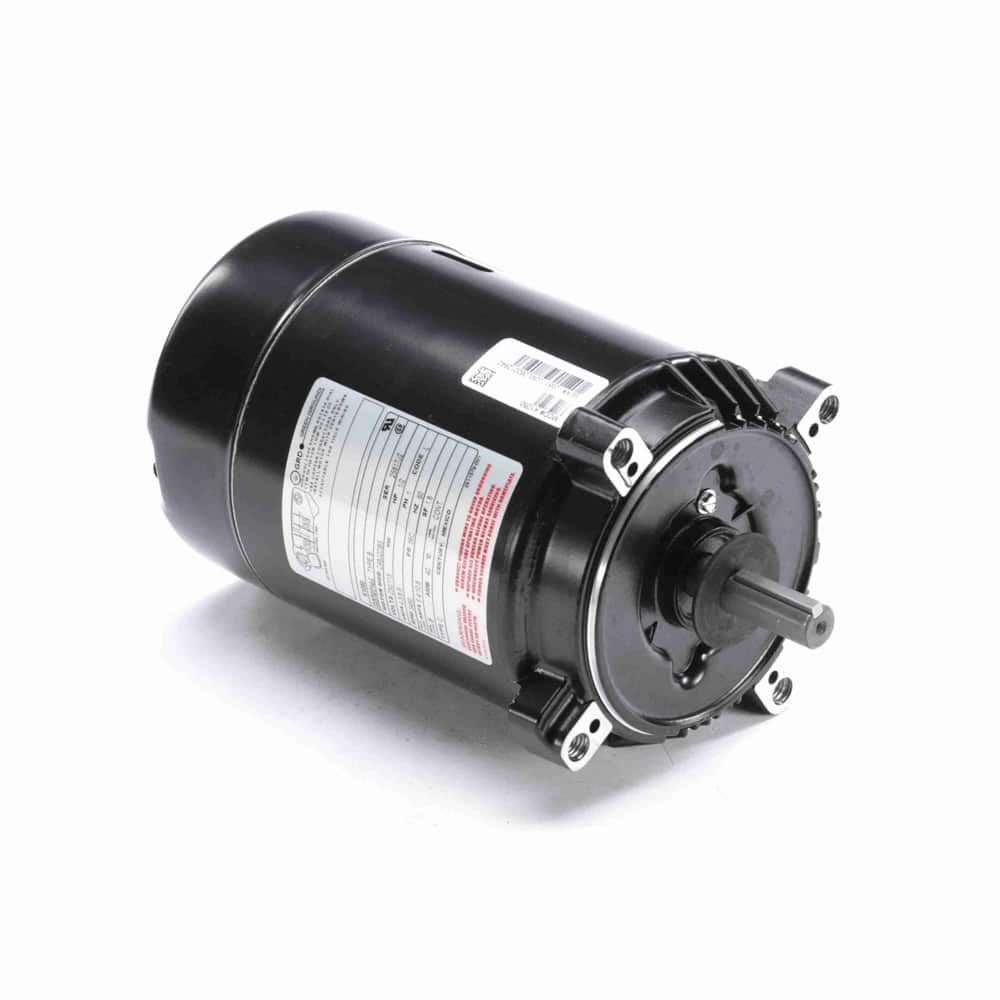

1/2HP 1PH 56C 2P ODP 3450 115/230V AOL JP
Mfr # K1050 | Wright’s # CEN K1050
1/2HP Jet Pump Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
$225.85
Product Information
Brand
Century
Mfr #
K1050
Wright's #
CEN K1050
Country of Origin
MEX
Specifications
C Dim
10.69"
Electrical Type
Capacitor Start Induction Run
Enclosure
ODP
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.3/8.6
Rated Voltage
115/230
Rotation
Counterclockwise Pump End
RPM
3450
Service Factor
1.6
Shaft Diameter
0.625"
Speed
3450
Starting Method
