Century
1/4HP 1PH 5.6″ 4P ODP 1725 115V AOL CIRC
Mfr # HW2024BL | Wright’s # CEN HW2024BL

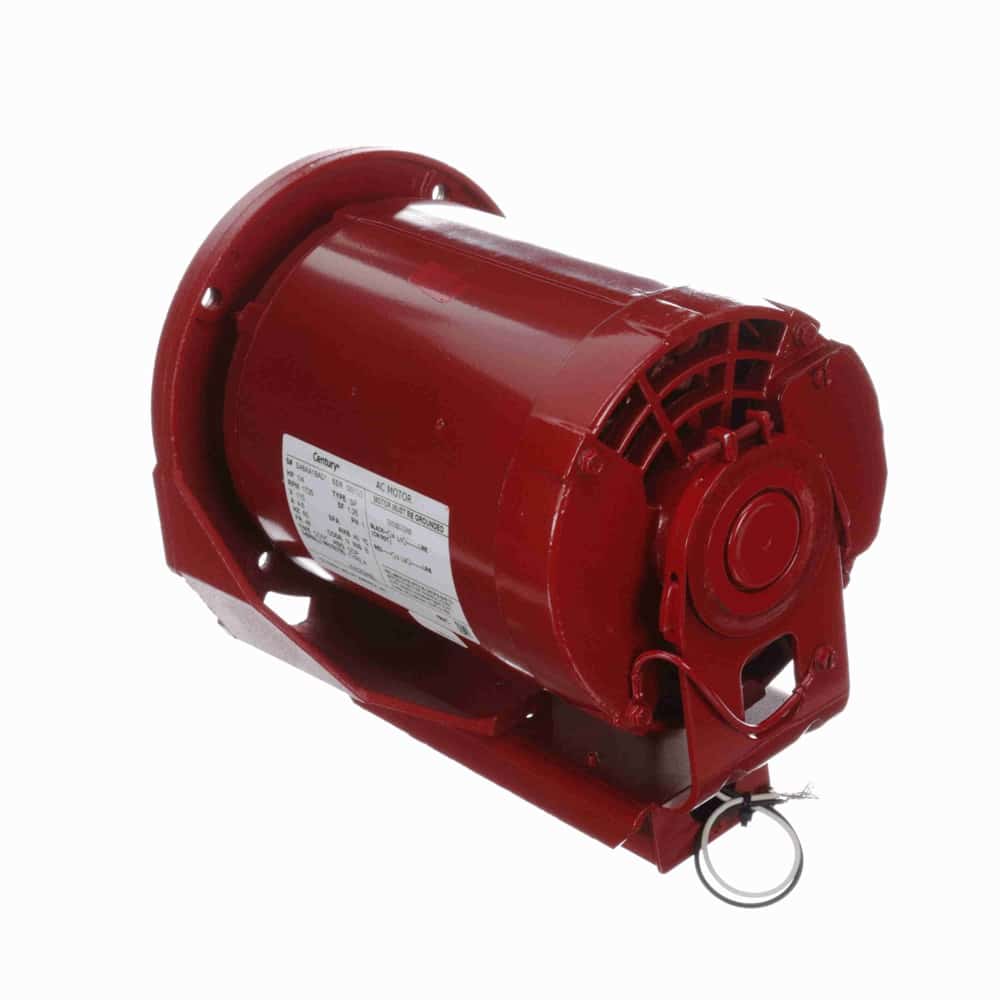

1/4HP Circulator Pump Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 115V, ODP Enclosure
$369.63
Product Information
Brand
Century
Mfr #
HW2024BL
Wright's #
CEN HW2024BL
Country of Origin
MEX
Specifications
C Dim
8.96"
Electrical Type
Split Phase, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.6
Rated Voltage
115
Rotation
Reversible
RPM
1725
Service Factor
1.25
Shaft Diameter
0.5"
Speed
1725
Starting Method
