Century
25W ShP 1500 CCWLE 115V 1.1A CI
Mfr # 297 | Wright’s # CEN 297

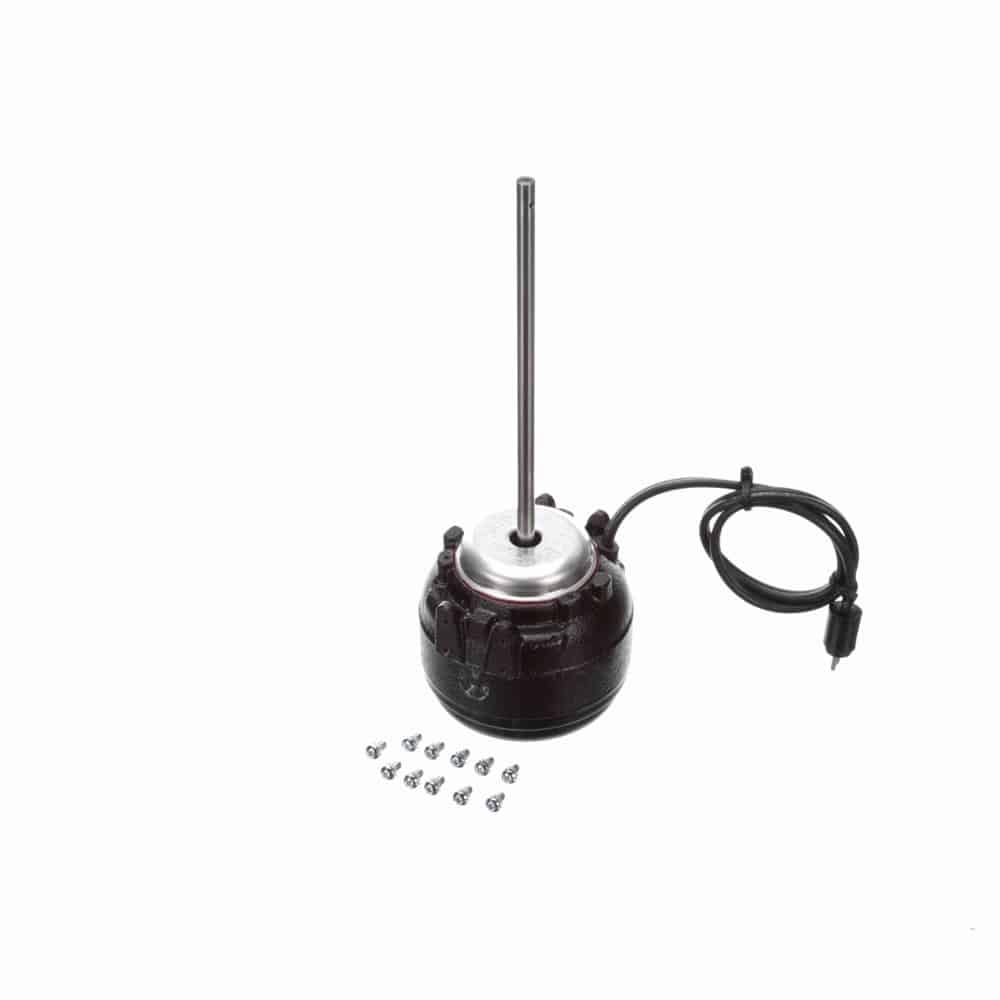

HP 25W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
$188.26
Product Information
Brand
Century
Mfr #
297
Wright's #
CEN 297
Specifications
Electrical Type
Shaded Pole
Enclosure
TEAO
Frame
UNIT BEARING
Frequency
60 Hz
Insulation Class
A
Material
Cast Iron
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.1
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1500
Service Factor
1
Shaft Diameter
0.312"
Speed
1500
Starting Method
Watt
25
Description
OEM Direct Replacement Motor
Unit Bearing
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Bearing – Unit
5/16″ Diameter Shaft with FlatϽ.75 ” Leads with Molded Plug
Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
HP 25W Unit Bearing Motor, 1 Phase, UNIT BEARING Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, TEAO Enclosure
